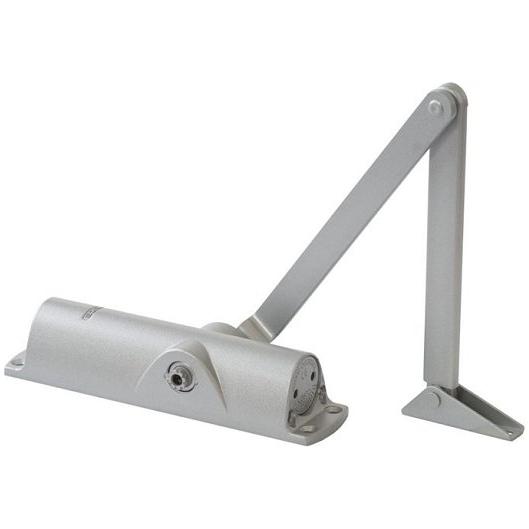

TS-1000 DOOR CLOSER - FIRE RATED

TS 1000 C door closer for the opposite hinge side for 1-leaf doors

The overhead door closer is suitable for 1-leaf doors up to a 950 mm leaf width. The closing speed and hydraulic latching action can be adjusted. Variable closing force in two stages by simply turning the bearing block for the link arm around: Closing force of type `weak´ (size 2 according to EN 1154) for door leaf widths of up to 850 mm and closing force of type `strong´ (size 3 according to EN 1154) for door leaf widths of up to 950 mm. The door closer is optionally available with a mounting plate and is suitable for both right and left single-action doors without conversion.

Product details:

• For internal doors
• For single-action doors, leaf width up to 950 mm
• Can be used for doors mounted on the right or left without conversion
• Standard installation on the door leaf, hinge side, transom installation possible on the side opposite the hinge
